SD35/70 pinout interface

The table below illustrates the cable pinout at the SD35/70 tool input.

../../../_images/pinout_8.jpg

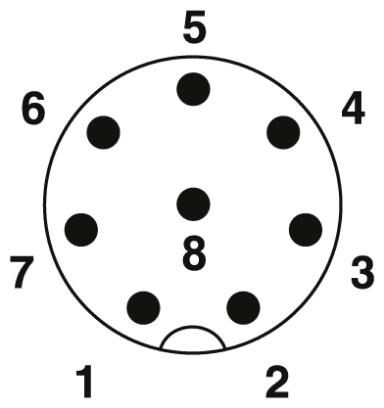

Signal connection pinout

Pin

Color

Signal

1

White

+24V – Robot/Safety supply (max. 2A)

2

Brown

+24V – Main power

3

Green

RS485 +

4

Yellow

RS485 -

5

Gray

SAFETY A

6

Pink

0V – Robot/Safety supply

7

Blue

GND – Main Power supply

8

Red

SAFETY B - OSSD
../../../_images/pinout_4.png

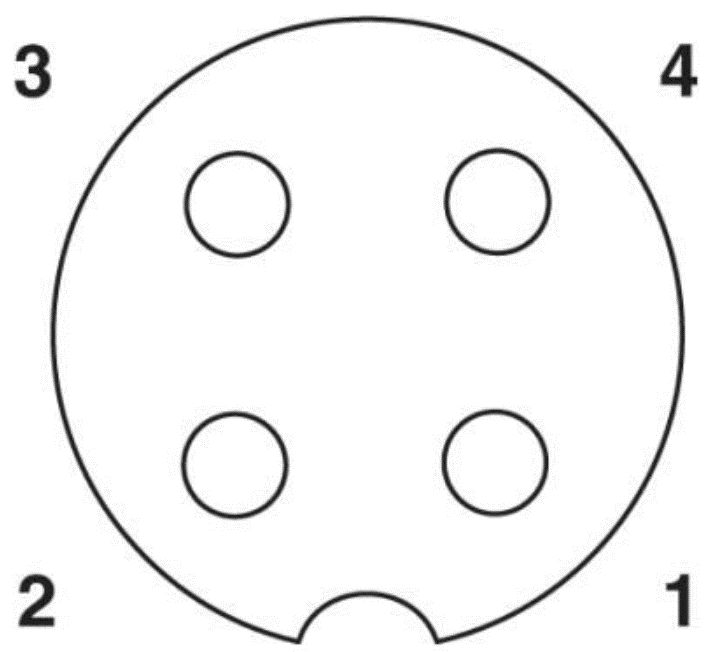

Power connection pinout

Pin

Color

Signal

1

Brown

+48V - Motor power (max. 4A)

2

White

+48V - Motor power (max. 4A)

3

Black

GND - Motor power

4

Blue

GND - Motor Power
