Spin Mount Specifications

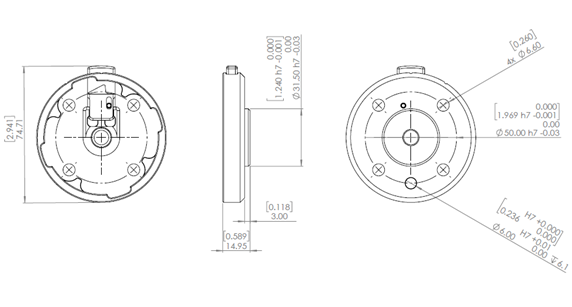

The mechanical mounting interface on the SD35/70 is a standard robot flange which complies with ISO 9409-1, Type 50-4-M6. Dimensions and tolerances are noted in mm [inches] the drawing below:
