Compliance
SD35 Declaration of incorporation
You can download the SD35 CE Declaration of incorporation here: CE Declaration

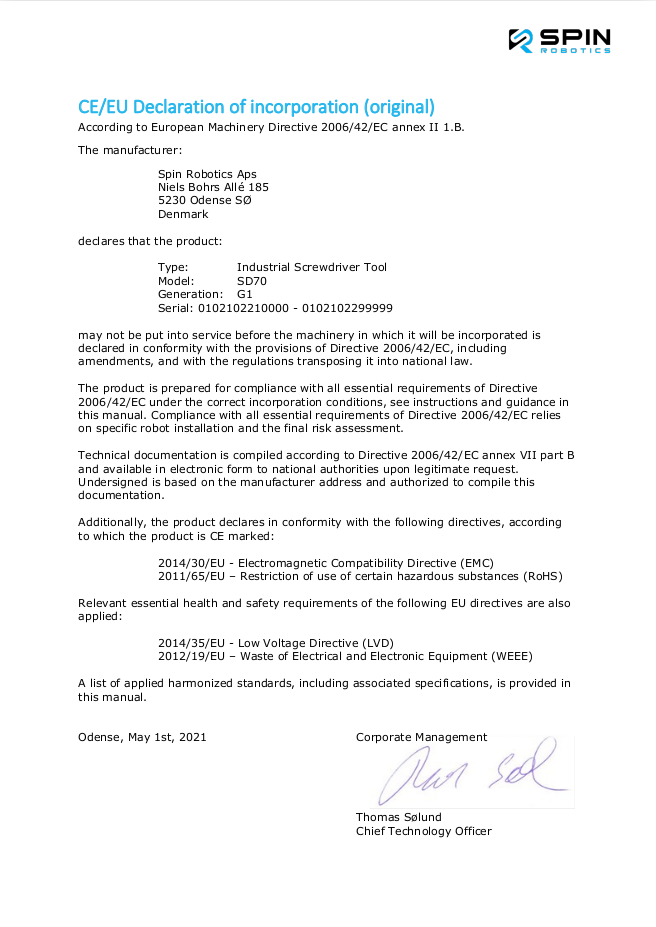

SD70 Declaration of incorporation
You can download the SD70 CE Declaration of incorporation here: CE Declaration
Applied Standards
Standards applied under the development of the product is listed in this section. When an EU Directive number is noted in brackets, it indicates that the standard is harmonized under that Directive.
ISO 12100:2010
EN ISO 12100:2010 (E) [2006/42/EC]
Safety of machinery – General principles for design – Risk assessment and risk reduction
The product is evaluated according to the principles of these standards.
ISO 10218-2:2011
EN ISO 10218-2:2011 (E) [2006/42/EC]
ANSI/RIA R15.06-2012
CAN/CSA-Z434-14
Robot and robotic devices – Safety requirements for industrial robots
Part 2: Robot systems and integration
The product is prepared for compliance with robot system requirements defined in the standards.
ISO/TS 15066:2016
RIA TR R15.606
Robots and robotic devices – Safety requirements for industrial robots – Collaborative operation
This is a Technical Specification (TS), not a standard. The product is prepared for easy integration in compliance with provisions in this Technical Specification, see, more in the safety chapter.
ISO/TR 20218-1:2018
Robotics – Safety requirements for industrial robots
Part 1: Industrial robot system end of arm tooling (end-effector)
This is a Technical Report (TR), not a standard. The product is designed according to principles in this Technical Report.
ISO 9409-1:2004 [Type 50-4-M6]
Manipulating industrial robots – Mechanical interfaces
The flange and tool changer on the SD35/70 conforms to type 50-4-M6 of this standard. Robots should also be constructed according to this standard to ensure proper fitting.
IEC 60529:2013
EN 60529/A2:2013
Degree of protection provided by enclosures (IP Code)
This standard defines enclosure ratings regarding protection against dust and water. SD35/70 is designed and classified with an IP rating according to this standard, see SD35/70 sticker.
IEC 61131-2:2007 (E)
EN 61131-2:2007 [2004/108/EC]
Programmable controllers
Part 2: Equipment requirements and tests
24V I/O signals in the Spin Bridge V1.2 are constructed for reliable communication with robots and PLC´s conforming to these signals.
IEC 61076-2-101:2014 [8-way, coding A, gold contacts]
EN 61076-2-101:2014 [8-way, coding A, gold contacts]
Connectors for electronic equipment
Part 2-104: Circular connectors – Detail specification for circular connectors with M12 screw- or snap-locking
The SD35/70 connector and the cable conform to type 8-way, M12, coding A, gold contacts, which is the highest quality rating defined in this standard. Mating operations: 100 times
ISO 13732-1:2006
EN ISO 13732-1:2008 [2006/42/EC]
Ergonomics of the thermal environment – Methods for the assessment of human responses to contact with surfaces
Part 1: Hot surfaces
The product is designed such that the surface temperature is kept under the ergonomic limits defined in this standard.
IEC 61000-6-2:2005
IEC 61000-6-4/A1:2010
IEC 61000-4-2
EN 61000-6-2:2005 [2004/108/EC]
EN 61000-6-4/A1:2011 [2004/108/EC]
EN 61000-4-2
Electromagnetic compatibility (EMC)
Part 6-2: Generic standards - Immunity for industrial environments
Part 6-4: Generic standards – Emission standard for industrial environments
The product is tested according to these standards.
EN 50370-2:2003
EN 50370-1:2005
Electromagnetic compatibility (EMC) – Product family standard for machine tools
Part 1: Emission
Part 2: Immunity
The product is tested according to these standards.
IEC 60068-2-1:2007
IEC 60068-2-2:2007
IEC 60068-2-27:2008
IEC 60068-2-64:2008
EN 60068-2-1:2007
EN 60068-2-2:2007
EN 60068-2-27:2009
EN 60068-2-64:2008**
Environmental testing
Part 2-1: Tests – Test A: Cold
Part 2-2: Tests – Test B: Dry heat
Part 2-27: Tests – Test Ea and guidance: Shock
Part 2-64: Tests - Test Fh: Vibration, broadband random and guidance
The product is designed to pass tests defined in these standards.
IEC 60664-1:2007
IEC 60664-5:2007
EN 60664-1:2007 [2006/95/EC]
EN 60664-5:2007
Insulation coordination for equipment within low-voltage systems
Part 1: Principles, requirements and tests
Part 5: Comprehensive method for determining clearances and creepage distances equal to or less than 2mm
The electrical circuitry of the product is designed in compliance with these standards.
UL 1740:2018 edition 4
Standard for Robots and Robotic Equipment
The product is designed to meet the requirements in both this and other relevant UL standards. For more information about UL compliance and field certification in US, contact your supplier.
ISO 20607:2019
Safety of Machinery – Instruction handbook – General Drafting Principles
